| System type | 2-way full range passive speaker | |||

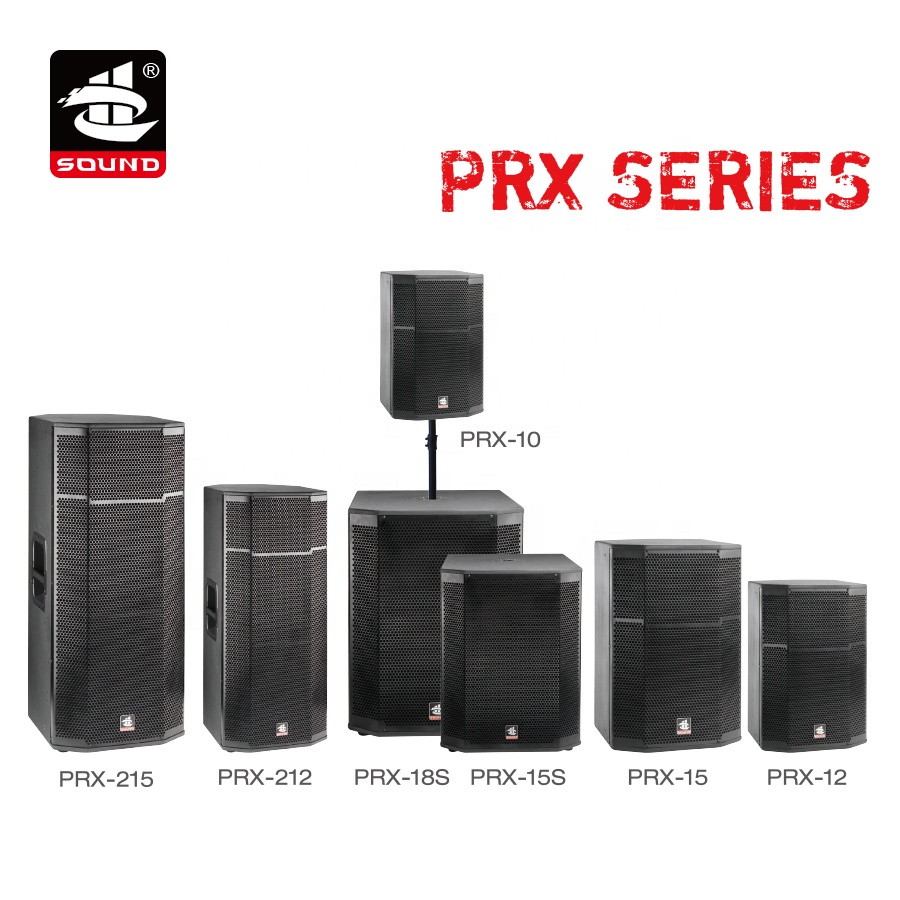

| Model Number | PRX-10 | PRX-12 | PRX-15 | PRX-212 |
| Frequency Response | 65-18 KHz | 60-18 KHz | 50-20 KHz | 50-18 KHz |
| Sensitivity | 96 dB | 97 db | 99 db | 99 db |
| Impedance | 8 ohm | 8 ohm | 8 ohm | 8 ohm |
| Rms Power | 200 W | 300 W | 400 W | 450 W |
| Peak Power | 800 W | 1200 W | 1600 W | 1800 W |
| Crossover Frequency | 2.5 KHz | 2.5 KHz | 2.5 KHz | 2.5 KHz |
| LF Components | 10"Woofer 40 Oz Magnet 2"VC | 12"Woofer 50 Oz Magnet 2.5"VC | 15"Woofer 60 Oz Magnet 3"VC | 2x12"Woofer 50 Oz Magnet 2.5"VC |
| HF Components | 3.5"Ti.Diap.Driver 1.35"VC | 3.5"Ti.Diap.Driver 1.35"VC | 4.5"Ti.Diap.Driver 1.75"VC | 3.5"Ti.Diap.Driver 1.35"VC |
| Maximum SPL | 120 dB SPL | 122 dB SPL | 126 dB SPL | 126 dB SPL |
| System type | 2-way full range passive speaker | Passive subwoofer system | |

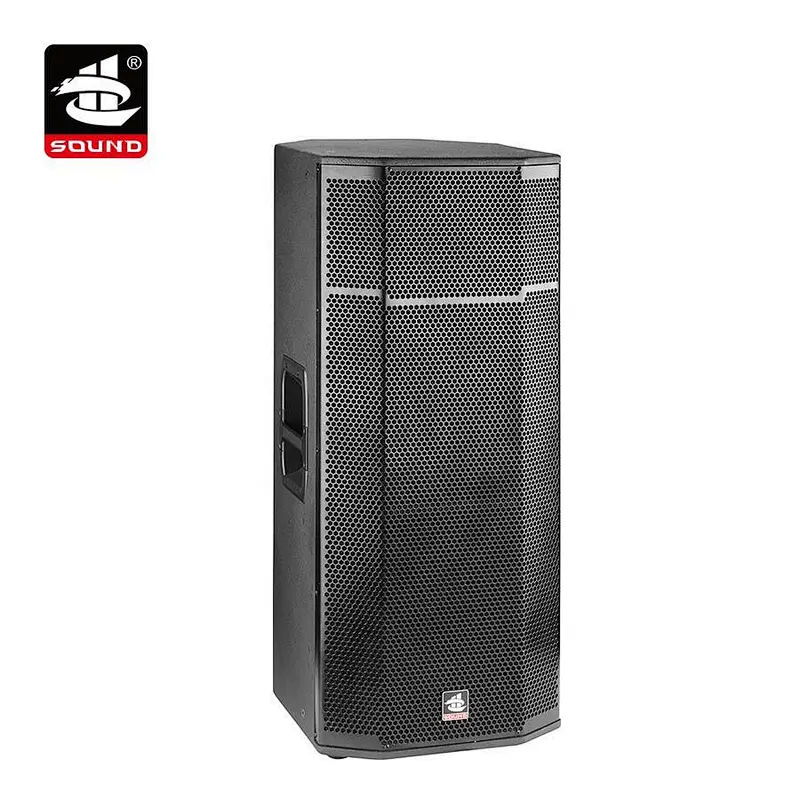

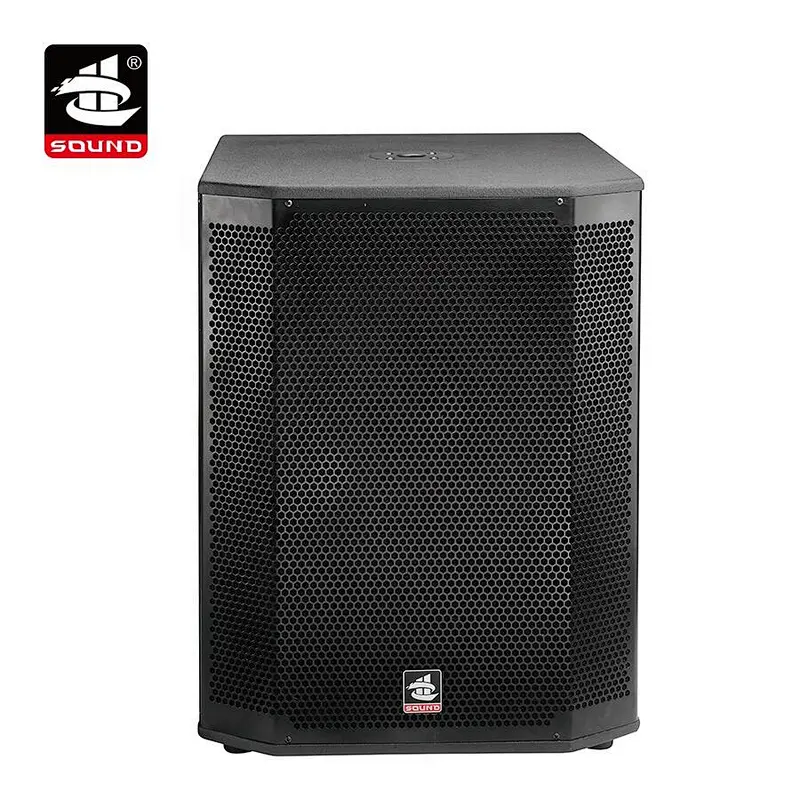

| Model Number | PRX-215 | PRX-15S | PRX-18S |
| Frequency Response | 38-20 KHz | 40-250 Hz | 35-200 KHz |
| Sensitivity | 101 db | 97 db | 98 db |
| Impedance | 8 ohm | 8 ohm | 8 ohm |
| Rms Power | 650 W | 600 W | 800 W |
| Peak Power | 2600 W | 2400 W | 3200 W |
| Crossover Frequency | 2.5 KHz | none | none |
| LF Components | 2x15"Woofer 60 Oz Magnet 3"VC | 15"Woofer 100 Oz Magnet 4"VC | 18"Woofer 125 Oz Magnet 4"VC |
| HF Components | 4.5"Ti.Diap.Driver 1.75"VC | / | / |
| Maximum SPL | 128 dB SPL | 126 dB SPL | 127 dB SPL |
Send Message
Related Products
Model NO. EVP Series

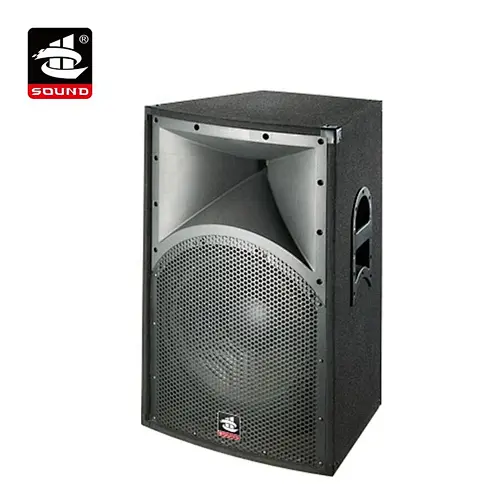

Model NO. SC Series

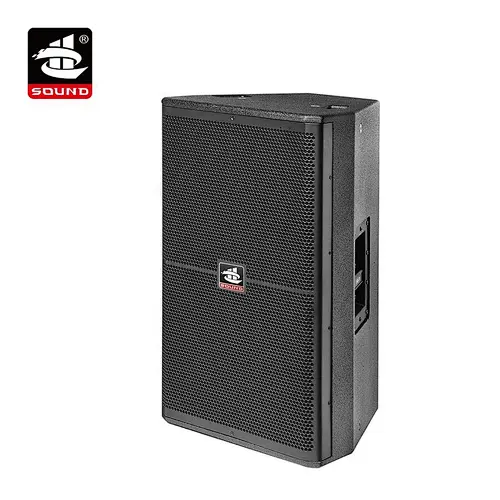

Model NO. SRX Series

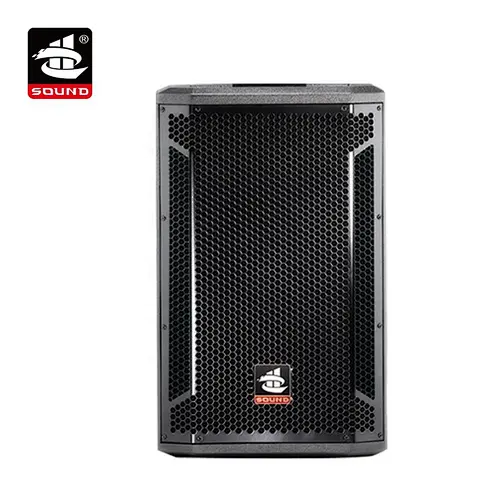

Model NO. STX Series
