| System type | 2-way full range passive speaker | |||

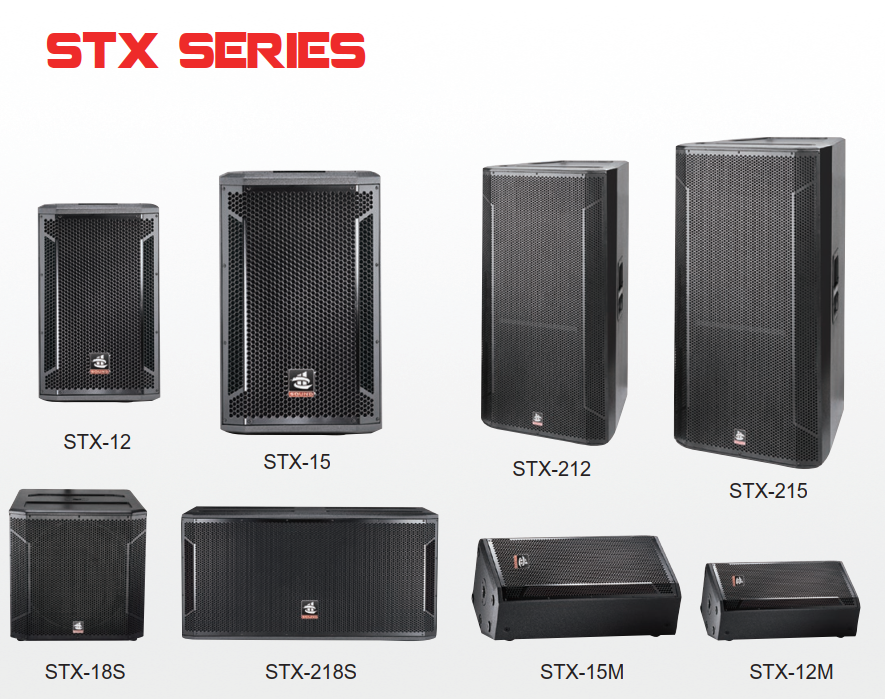

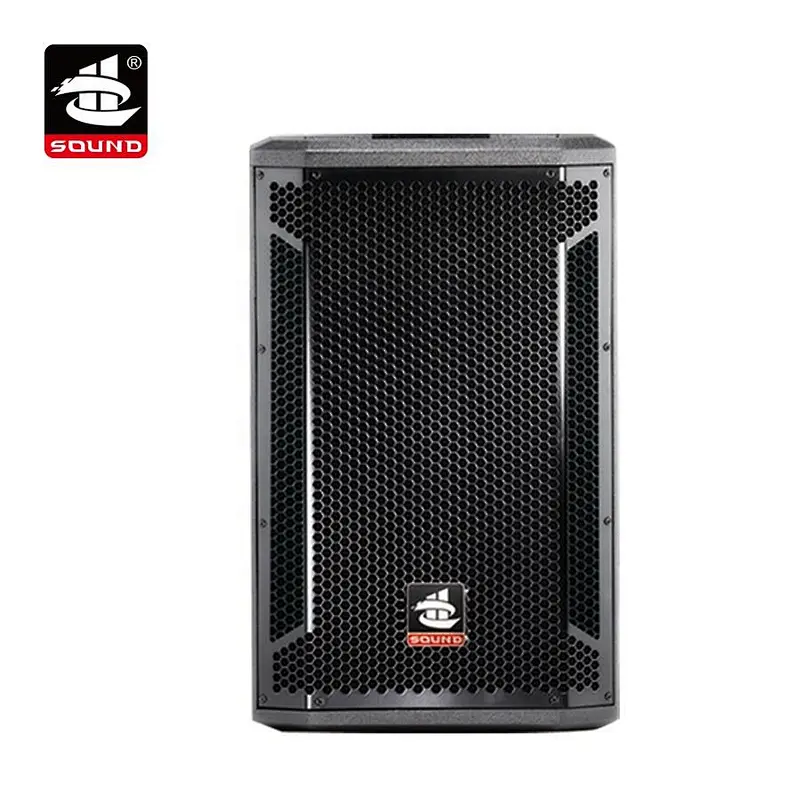

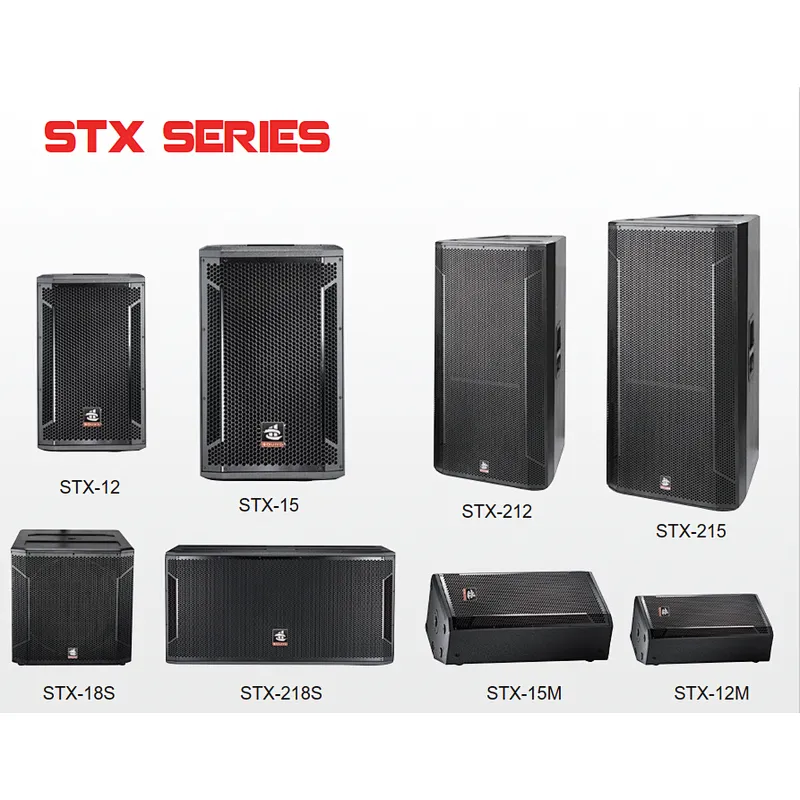

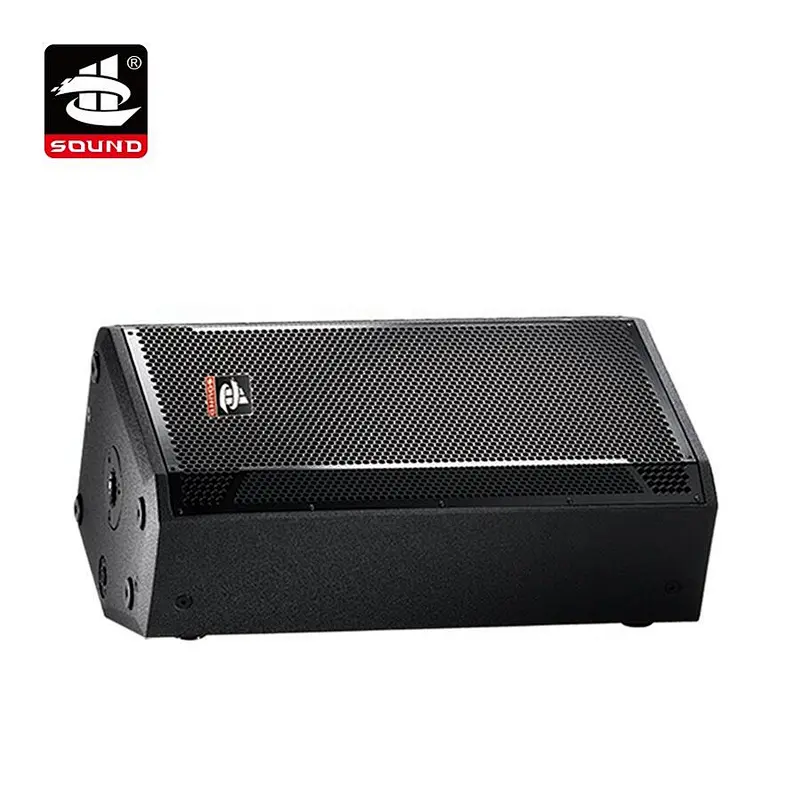

| Model Number | STX-12 | STX-15 | STX-12M | STX-15M |
| Frequency Response | 60-18 KHz | 50-20 KHz | 60-18 KHz | 50-20 KHz |
| Sensitivity | 97 dB | 99 db | 97 db | 99 db |
| Impedance | 8 ohm | 8 ohm | 8 ohm | 8 ohm |
| Rms Power | 300 W | 400 W | 300 W | 400 W |
| Peak Power | 1200 W | 1600 W | 1200 W | 1600 W |
| Crossover Frequency | 2.5 KHz | 2.5 KHz | 2.5 KHz | 2.5 KHz |
| LF Components | 12"Woofer 50 Oz Magnet 2.5"VC | 15"Woofer 60 Oz Magnet 3"VC | 12"Woofer 50 Oz Magnet 2.5"VC | 15"Woofer 60 Oz Magnet 3"VC |
| HF Components | 3.5"Ti.Diap.Driver 1.35"VC | 4.5"Ti.Diap.Driver 1.75"VC | 3.5"Ti.Diap.Driver 1.35"VC | 4.5"Ti.Diap.Driver 1.75"VC |
| Maximum SPL | 122 dB SPL | 126 dB SPL | 122 dB SPL | 126 dB SPL |
| System type | 2-way full range passive speaker | Passive subwoofer system | ||

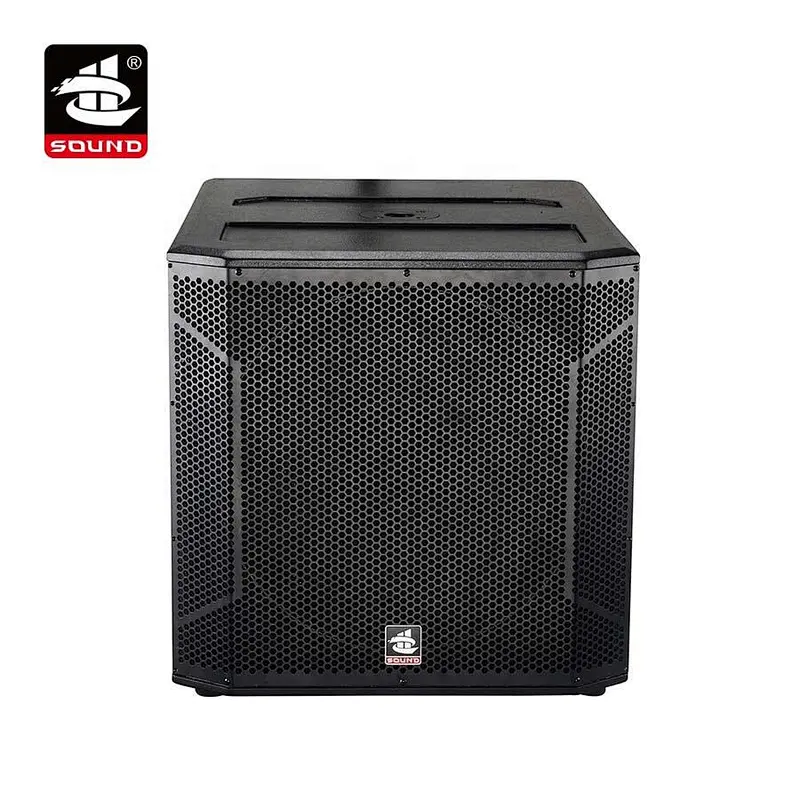

| Model Number | STX-212 | STX-215 | STX-18S | STX-218S |
| Frequency Response | 50-18 KHz | 38-20 KHz | 35-200 Hz | 35-180 KHz |
| Sensitivity | 99 dB | 101 db | 98 db | 99 db |
| Impedance | 8 ohm | 8 ohm | 8 ohm | 8 ohm |
| Rms Power | 450 W | 650 W | 800 W | 1600 W |
| Peak Power | 1800 W | 2600 W | 3200 W | 6400 W |
| Crossover Frequency | 2.5 KHz | 2.5 KHz | none | none |
| LF Components | 2x12"Woofer 50 Oz Magnet 2.5"VC | 2x15"Woofer 60 Oz Magnet 3"VC | 18"Woofer 125 Oz Magnet 4"VC | 2x18"Woofer 125 Oz Magnet 4"VC |
| HF Components | 3.5"Ti.Diap.Driver 1.35"VC | 4.5"Ti.Diap.Driver 1.75"VC | / | / |
| Maximum SPL | 126 dB SPL | 128 dB SPL | 127 dB SPL | 128 dB SPL |
